Subaru EZ30 / Toyota 2JZ / Sportbike MAP & TPS Connector Kit

Don't let a "ghost in the machine" ruin your tune. This TS 090 Sealed Series 3-pin connector is the industry standard for some of the most iconic Japanese engines and motorcycles. If your MAP sensor or Throttle Position Sensor (TPS) plug is cracked or the seal has perished, your ECU will receive erratic data, leading to poor idling, flat spots, or stalling.

This kit is a direct OEM-spec replacement that provides a secure, weather-tight snap-lock fit. It’s perfect for refreshing a tired factory harness or building a custom loom for a forced-induction build.

Compatibility & Fitment

This versatile 3-pin connector fits a huge range of applications:

• Subaru: EZ30 MAP Sensor.

• Toyota: 2JZ MAP Sensor (Cross-ref: 90980-10845 / 90980-12636).

• Motorcycles: Suzuki GSX-R, SV650/1000, and Bandit series; Yamaha R1, FZ1, and FZ6 models using Mikuni TPS units.

• Cross Reference: KTM 000700000BZ.

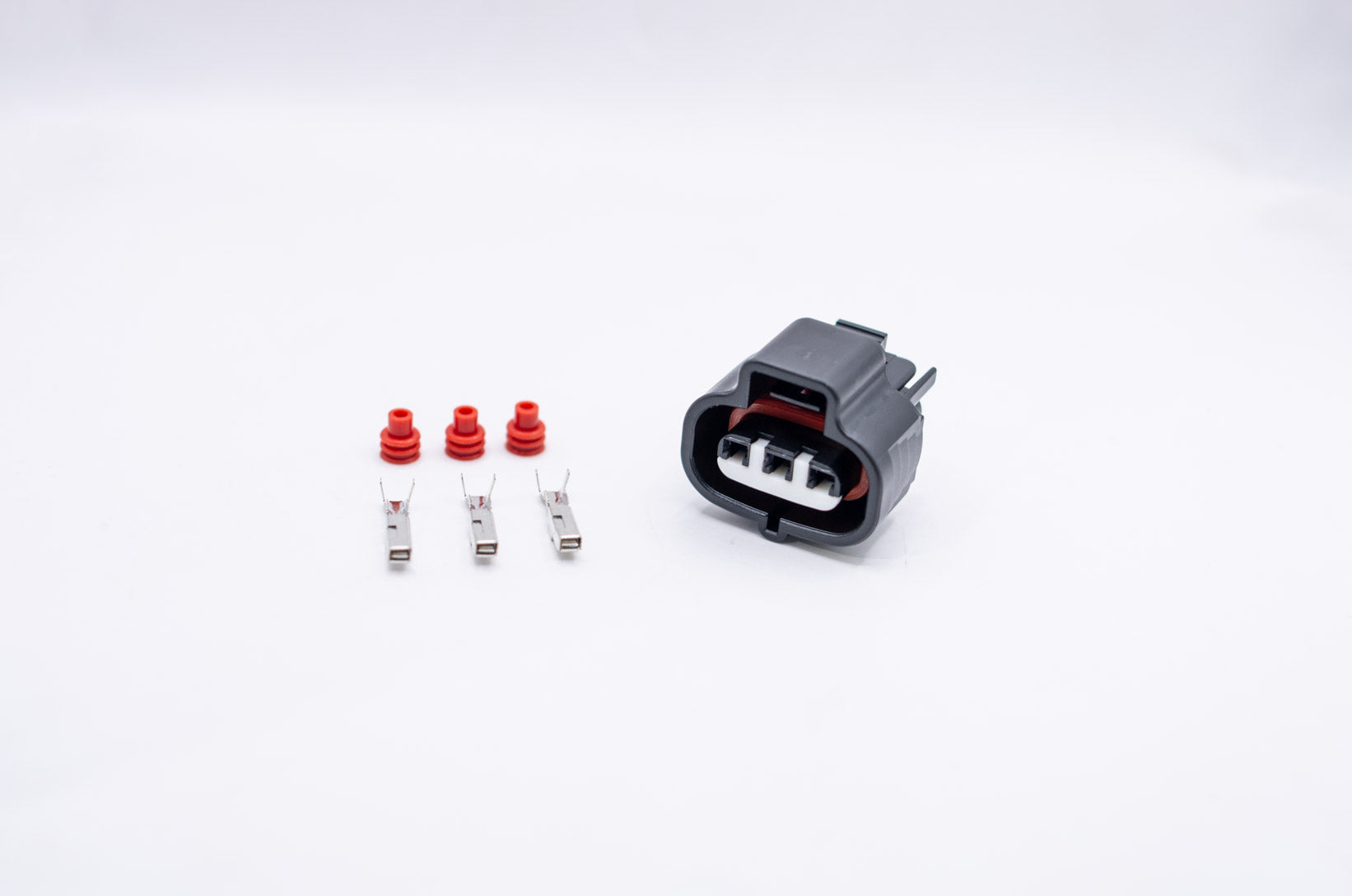

What’s in the Box?

• 1x Connector Body (3-Pin)

• 3x High-Conductivity Terminals

• 3x Weatherproof Wire Seals

Installation

• Crimp Tool: To maintain signal integrity for sensitive sensors like MAP and TPS, we highly recommend using the Sargent 1026CT crimp tool for a professional, gas-tight connection.
