Subaru & Toyota 3-Pin Alternator Connector Kit (HX 090 Series)

Tired of the "Battery" light flickering on your dash? The HX 090 Sealed Series 3-pin connector is a primary failure point on many Subaru and Toyota charging systems. High engine bay temperatures eventually turn the factory plastic brittle, causing the locking tab to snap or the internal terminal seats to fail.

Unlike many aftermarket options, this connector is confirmed to work with your OEM terminals. This means if your wiring is still healthy but the plastic housing is smashed, you can simply swap the housing over without the need to cut and solder—saving you time and maintaining the integrity of your factory loom.

Compatibility & Fitment

This 3-pin weatherproof connector is a direct replacement for:

• Subaru: Fits a wide range of factory alternators.

• Toyota: Fits various Denso-style alternators.

• OEM P/N: 6189-0544.

• Series: HX 090 Sealed.

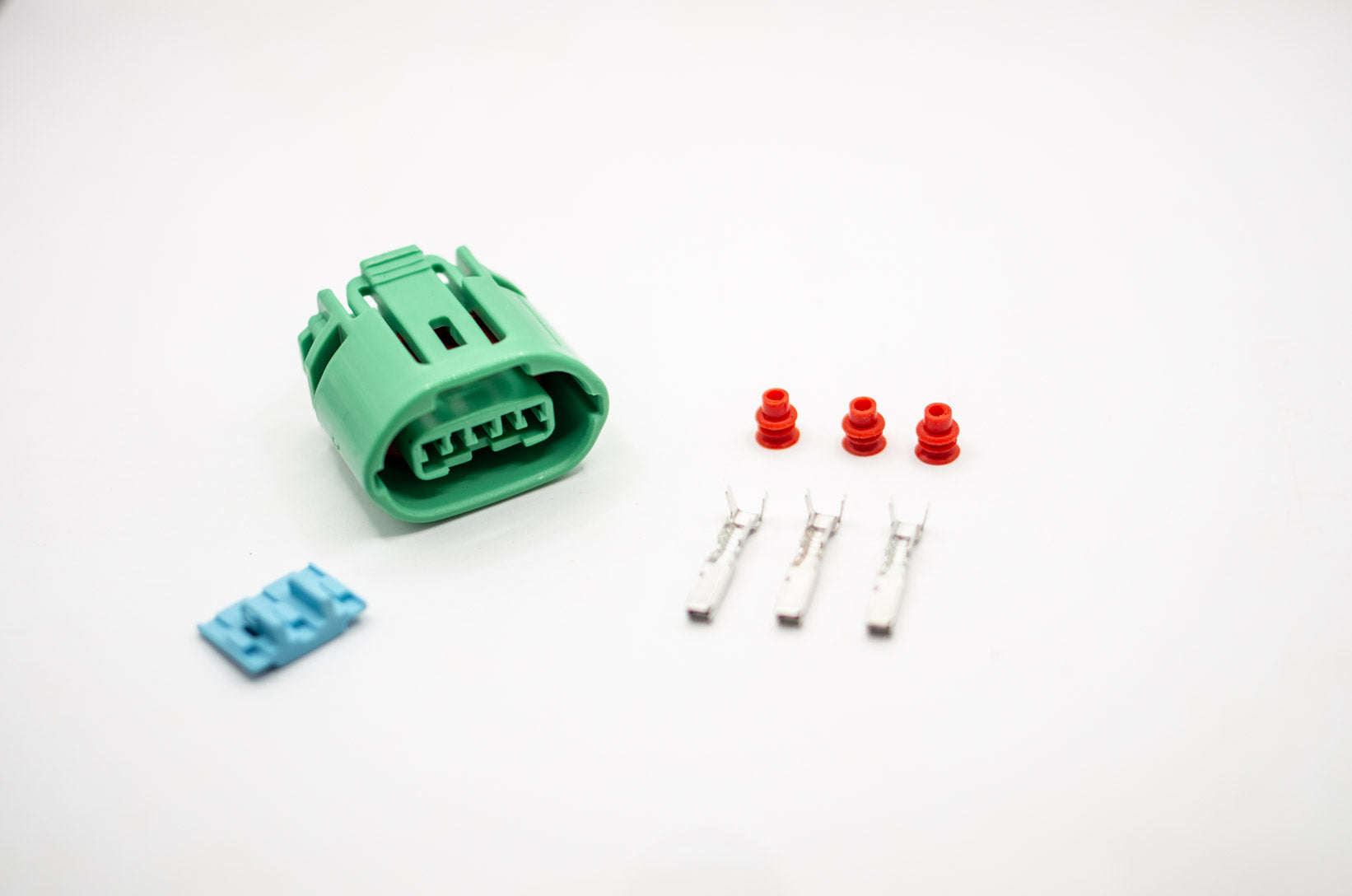

What’s in the Box?

• 1x Connector Body (3-Pin)

• 1x Locking Wedge (Ensures terminals stay locked in place)

• 3x High-Conductivity Terminals (For full harness repairs)

• 3x Weatherproof Cable Seals

Installation

• Repair Tip: If your existing terminals are in good condition, you can depin your old connector and slide them directly into this new housing.

• Full Rebuild: If you are crimping new pins, we recommend the Sargent 1026CT crimp tool for a professional, gas-tight connection.
