Subaru & Mazda 4-Pin Multi-Function Connector Kit (TPS / Ignition / Cam / Crank)

One plug, a dozen uses. This DL 090 Sealed Series 4-pin connector is the factory replacement for several critical sensors across the Subaru and Mazda lineups. Whether you are repairing a heat-damaged Ignition Coil plug on your WRX or refreshing the TPS/Crank sensor on an RX7 or MX-5, this kit provides a secure, weatherproof connection that exceeds OEM standards.

Because these connectors are often located near the exhaust manifold or cylinder head, the plastic clips are prone to snapping. This kit allows you to replace the housing and terminals, ensuring your engine vitals stay connected even under extreme vibration and heat.

Compatibility & Fitment

This 4-pin "Key 2" connector is a direct replacement for:

• Subaru: Ignition Coil Packs and Throttle Position Sensors (TPS).

• Mazda FD RX7: Throttle Position Sensor (TPS).

• Mazda MX-5 (Miata): Ignition Coils, Cam Sensors, and Crank Angle Sensors (CAS).

• Mates with: Sumitomo DL090-4P-2 Connector (The male/plug side).

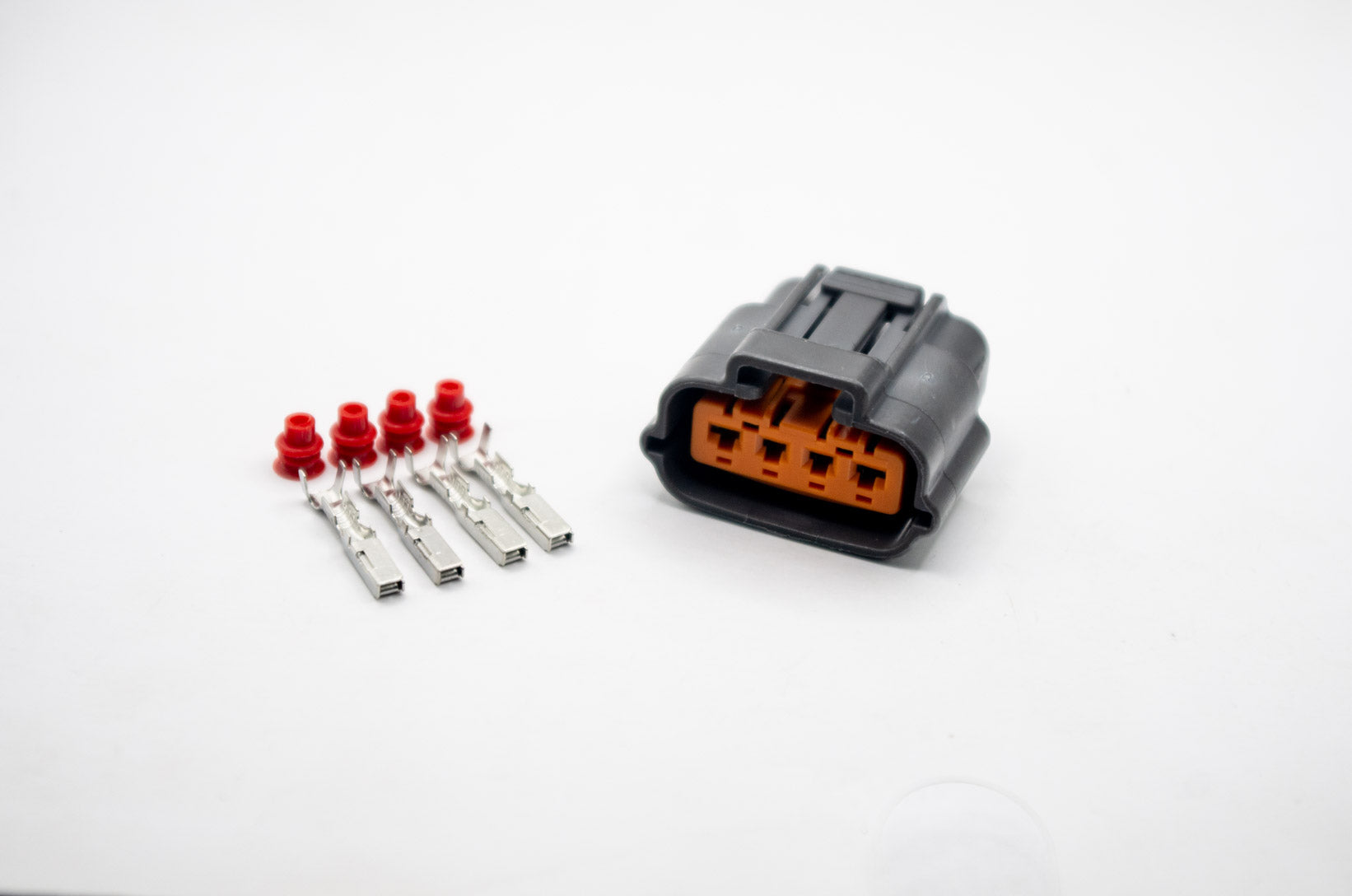

What’s in the Box?

• 1x Connector Body (4-Pin Female)

• 4x High-Conductivity Terminals

• 4x Weatherproof Wire Seals

Installation

• Crimp Tool: Since this connector often handles sensitive timing signals (Cam/Crank), a perfect crimp is essential. We recommend using the Sargent 1026CT crimp tool to prevent signal noise or voltage drops.
