Subaru GC8 APP Bracket
Subaru GC8 APP Bracket
Regular price
$109.00 AUD
Regular price
Sale price
$109.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Add to backorder 4 weeks
Couldn't load pickup availability

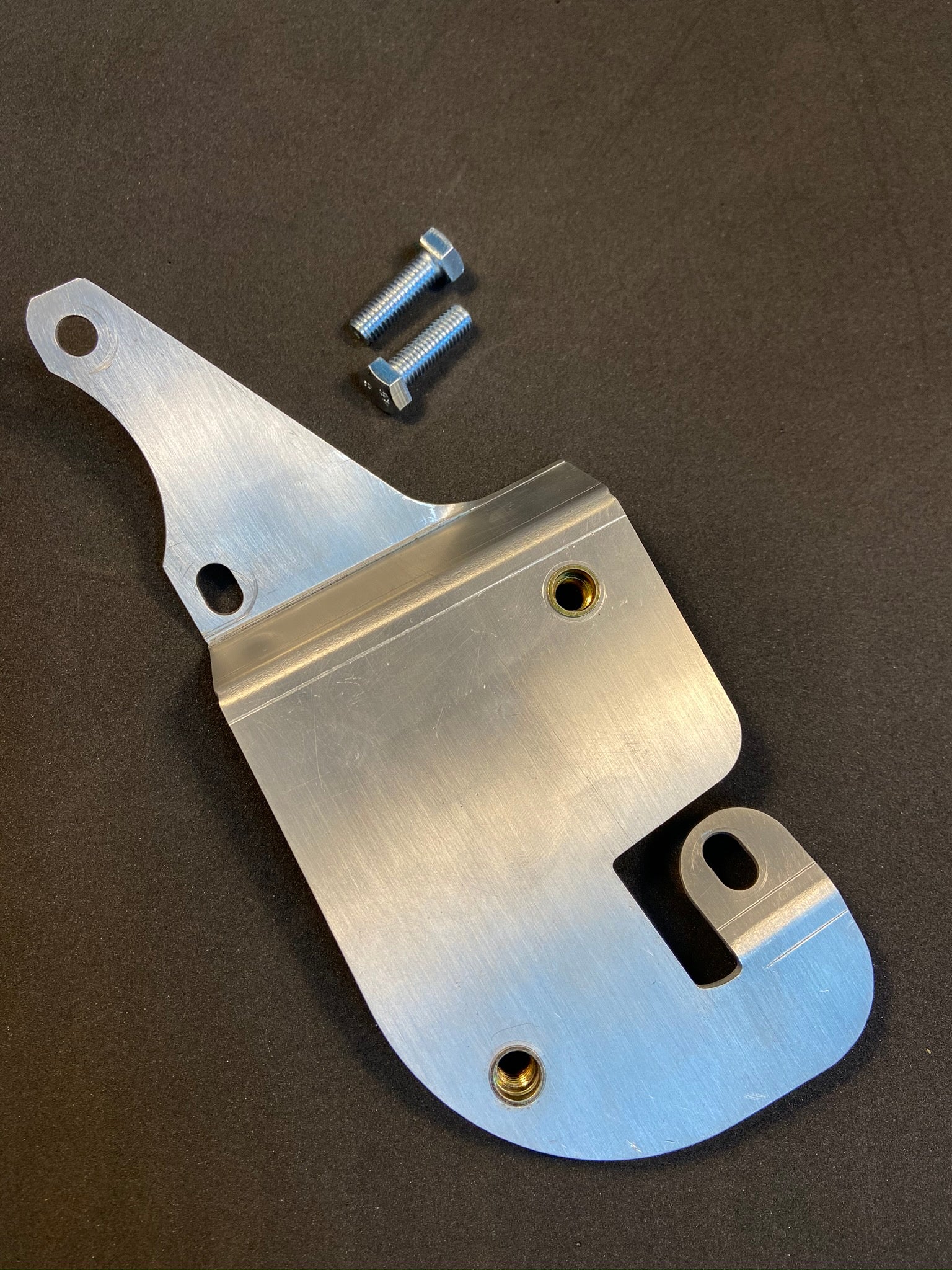

The Subaru CG8 APP bracket is used for mounting a late model WRX accelerator pedal onto a GC8 or RS Liberty for your Drive by Wire conversion.
\n
\nCAD modeled and CNC Machined from 6060 aluminum ensures perfect accelerator pedal placement with this bracket.
\n

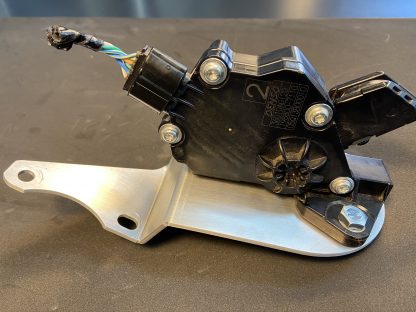

\nIncludes two bolts for mounting pedal to bracket.

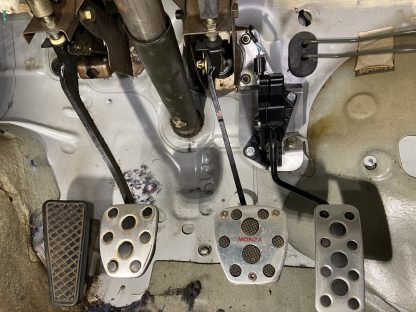

\nUse existing hardware from standard accelerator pedal to mount bracket to chassis.
\n
\nMachined from 3mm 6060 aluminum.
\n
\nLifetime warranty for the bracket
\n
\nhttps://youtu.be/K01tUOdfoKs
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nConnector Pinout:
\n
\n
\nConnector Pinout:
\n
\n
\n
\n
\n
\nWiring and Connectors
\nThis bracket is to suit Subaru pedals with the part number 36010AG120 (or equivalent). This part is found in most models from 2008 onwards. \n \nThe connector on this pedal assembly is the Sumitomo TS025-6S-2 6-Way Connector.
\n
\nConnector Pinout:
\n
\n
\n
\n
\n
\nPinout taken from a 2011 Subaru Impreza
\n
\n
\n
\nWhen doing this conversion, a Subaru DBW Throttle body is generally used.
\n
\nThe Subaru DBW Throttles use a Yazaki 090II-6S-1 6-Way Connector.
\n
\n| 1 | \n2 | \n3 | \n4 | \n5 | \n6 | \n
| +5V (sub) | \nSensor Ground (sub) | \nSignal (sub) | \n+5V (main) | \nSensor Ground (main) | \nSignal (main) | \n
\n
\nConnector Pinout:
\n
\n
\n
\n
\n
\n| 1 | \n2 | \n3 | \n4 | \n5 | \n6 | \n
| Throttle Motor (+) | \nThrottle Motor (-) | \nSensor Ground | \nSignal (sub) | \nSignal (main) | \n+5V | \n
Pinout taken from a 2011 Subaru Impreza
\nDrive by Wire Pedal Adapter Bracket
\nSubaru accelerator pedal bracket
\nSubaru Drive by Wire Conversion
