Front Bumper Repair Plates Toyota Crown JZS171

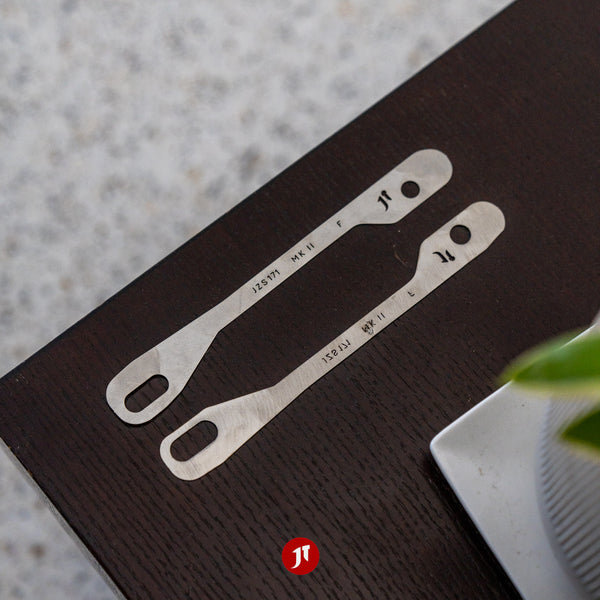

These stainless steel plates are designed to repair and upgrade damaged side tab attachment holes for the OEM front bumper.

To install, simply sand down & clean surfaces on the damaged bumper tabs and the repair plates. Then simply glue the plates in place. Apply evenly spread pressure with clamps whilst it’s drying.

Recommended adhesive: JB Weld Plastic Bonder 25mL Black 50139 (not included).

These plates are designed can be installed in several ways.

The plates can be trimmed to size and installed on the bottom side of the damaged plastic tabs.

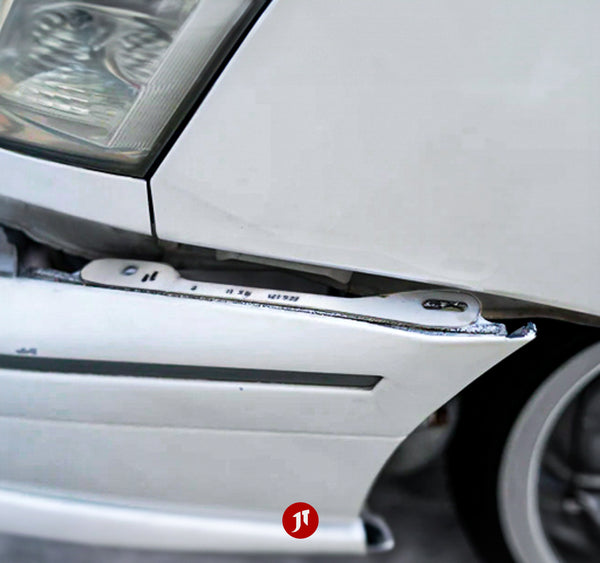

If the main side circular hole is broken, these plates can be installed on top of the damaged bumper tabs as shown in the photos and act as a reinforcement.
