Deutsch DTHD 1-Pin Heavy Duty Connector Kit (Power & Ground)

When a standard splice isn't enough, the Deutsch DTHD Series steps in. This kit provides a professional, environmentally sealed, and field-serviceable alternative to permanent wire splices. Designed specifically for heavy-duty power and ground applications, these single-terminal connectors are compact yet incredibly rugged.

Perfect for high-draw components like aftermarket fuel pumps, thermo fans, or auxiliary battery feeds, the DTHD can be used as an in-line connection or mounted directly to a bracket. It provides a secure, vibration-resistant "click" that ensures your high-current circuits stay powered even in the harshest engine bay environments.

Compatibility & Fitment

• Series: Deutsch DTHD (Size 12 Contacts).

• Application: High-current power/ground signals (In-line or Mounted).

• Current Rating: Rated for up to 25 Amps (depending on wire gauge).

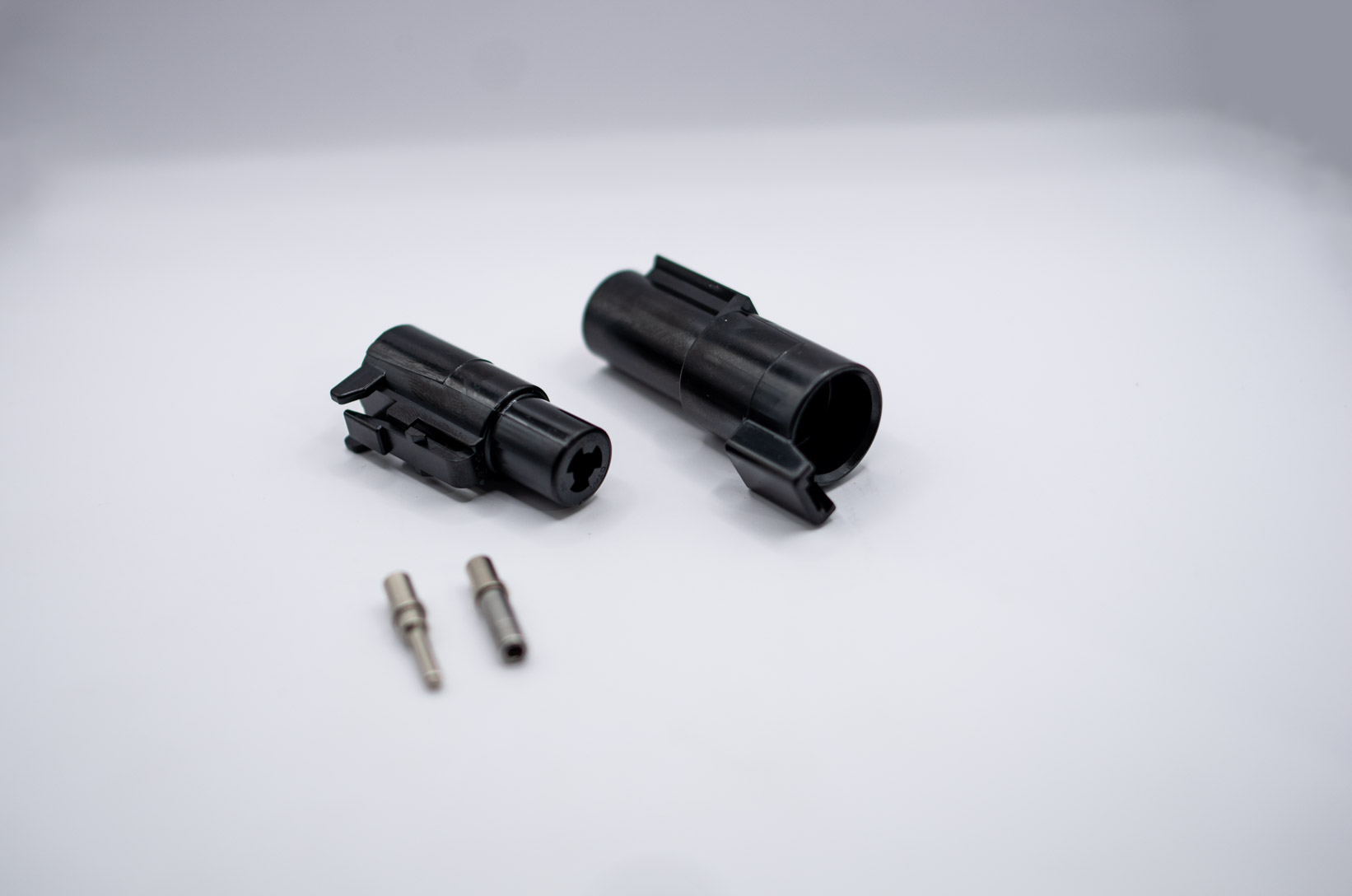

What’s in the Box?

This complete termination kit includes:

• 1x DTHD04-1-12P (Receptacle / Male Housing)

• 1x DTHD06-1-12S (Plug / Female Housing)

• 1x 0460-204-12141 (Solid Male Pin, Size 12)

• 1x 0462-203-12141 (Solid Female Socket, Size 12)

Installation & Tooling

• Crimp Tool: To achieve a professional, gas-tight connection on these solid terminals, the DET12 crimp tool is required.

• Serviceability: If you need to depin or move the connector, use the Orange, Size 12 Deutsch HD30 Extraction/Removal Tool.
