PT Motorsports

Team Plus Turtle PRO Wheel + Brake CANGate Bundle

Team Plus Turtle PRO Wheel + Brake CANGate Bundle

$3,600.00 AUD
$3,600.00 AUD
Sale Add to backorder 3 - 4 weeks
Tax included.

Add to backorder 3 -4 weeks

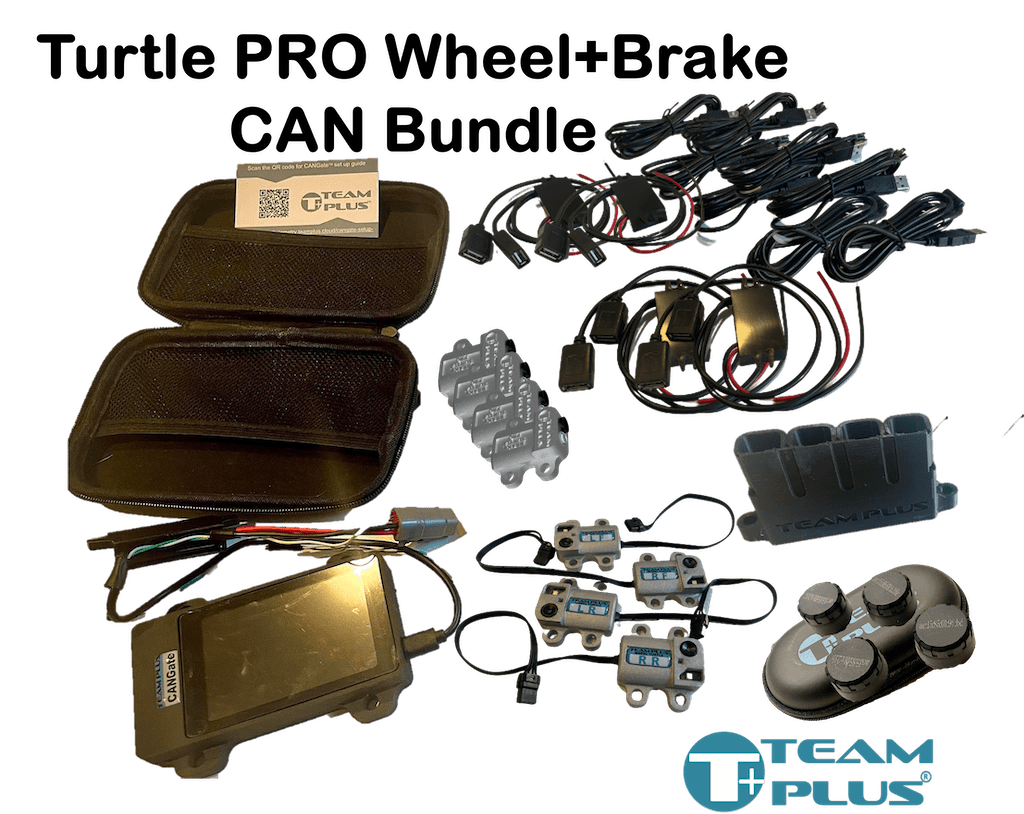

The Team Plus Turtle PRO Tyre+Brake CANGate Bundle includes the products you need to get you started with your Team Plus® Wheel Turtle® PRO Tyre Temp Sensors plus our Brake Turtle rotor temp sensors and  Track Grade Exteral TPMS Pressure Sensors and connection to your CAN system using the Team Plus CANGate including a CANHUB 4 PORT and a 90cm power+CAN cable. \n \nTurtle PRO Tyre+Brake CANGate Bundle includes: \n
    \n
  • Set of 4 Wheel Turtle® PRO Tyre Temp Sensors
    • \n
  • Set of 4 Brake Turtle™ PRO Brake Temp Sensors
    • \n
  • Wiring Kit with USB cables and 12v-USB adapters for Turtle Power
    • \n
  • Set of 4 External Team Plus® Track Grade TPMS Pressure sensors
    • \n
  • Team Plus® CANGate
    • \n
  • Team Plus® CANHub 4 Port wiring hub
    • \n
  • 90cm (3ft) Cable from CANGate to 4 wire (12V, Ground, CAN H, CAN L)
    • \n
\nMore details about each part of this bundle is available below: \n

Wheel Turtle Pro Tyre Temperature System (set of 4)

\n
\n
The Team Plus™ WHEEL TURTLE™ PRO is an innovative sensor module designed to mount in a wheel arch.  Each WHEEL TURTLE™ collects data on 8 Temperature points across the face of each tyre, plus distance to wheel for suspension movement and tyre colour RGB values. These values are sent via Bluetooth and can be
\n
\n
\n
    \n
  • \n
      \n
    • Viewed live on Team Plus™ TELDASH™ phone app
      • \n
    • Logged and/or remote viewed using TELEDASH phone app or  Team Plus™ TELELOGGER™
      • \n
    • Integrated to your CANbus Dash or Logger uning the  Team Plus™ CANGate.
      • \n
    \n
    • \n
\nThe WT1 model features: \n
\n
\n
\n
    \n
  • \n
      \n
    • Temps per tire/tyre: 8 + Distance and  RGB Color/Colour
      • \n
    • Update Rate: 15Hz
      • \n
    • Case: Alloy
      • \n
    • Power Source: Hard Wired 12V
      • \n
    • Sensor Head: Fixed
      • \n
    • Dimensions: mm 47(L) x 50(W) x 13(H)
      • \n
    \n
    • \n
\n

CANGate

\n
\n
Connect your Team Plus® Wheel Turtle®,  Team Plus® Tyre Pressure (TPMS), Team Plus® Brake Turtle® to your existing CANbus setup via the Team Plus® CANGate®. CANGate® connects to the Team Plus® sensors over Bluetooth and then passes data onto your CANbus, so it is available to any CAN based dash or logger or ECU. The CANGate set up is ideal for cars with existing or planned CANbus based race dash or loggers, so all the data is integrated together and analysed alongside your other key performance data.
\n
\n
\n
\n
\n
\n
\n

External Track Grade TPMS - Tyre Pressure Monitors

\n
\n
The Team Plus® Track Day Grade TPMS is a purpose built for racing set of 4 tyre pressure modules to mount on each tyre valve measuring:
\n
\n
\n
    \n
  • Tyre Pressure within 0.1psi
    • \n
  • Valve Temperature
    • \n
  • at around 10 updates per second. (10hz)
    • \n
\nAUTO FIND capability allows you to change sensors to any tyre anytime or change to a new tyre and the sensor will be automatically assigned to the correct wheel.   AUTO FIND is a feature available when Team Plus® TPMS is used with Team Plus® Wheel Turtle® PRO sensors. The TPMS stream LIVE to the Team Plus® CANGate® allowing you to:  \n
    \n
  • \n
      \n
    • view Pressure of all 4 wheels live on the CANGate® display
      • \n
    • add the pressure data to the CANBus configuration
      • \n
    \n
    • \n
\n
\n

CANHub 4 Port

\n
\n
4 Port CAN bus hub – Universal fitment, suits all ECUs and CAN bus devices (wiring permitting) Supplied with two different mounting options:
\n
\n
\n
    \n
  • Horizontal – lay your CAN hub down on the mounting surface to keep cables flat against the panel for neater cable management.
    • \n
  • Vertical – stand your CAN hub up perpendicular with the mounting surface for easier connecting and disconnecting of devices.
    • \n
\n
    \n
  • Connect up to 4 CAN devices onto the one network, supplying Power, Ground and CAN comms to all devices.
    • \n
  • Daisy Chain additional CAN Hubs to extend your CAN network even further.
    • \n
  • Convenient way to supply Power and Ground to devices that don’t need CAN Comms also.
    • \n
  • Proudly designed and manufactured in Australia
    • \n
\n
\n

Brake Turtle Pro Brake Temperature System (set of 4)

\n
\n
The Team Plus® BRAKE TURTLE™ Pro is an add-on to the WHEEL TURTLE® PRO to mount in each wheel arch sending:
\n
\n
\n
    \n
  • Brake rotor temperature
    • \n
  • 15Hz update rate over bluetooth
    • \n
\nNOTE:  A Team Plus® WHEEL TURTLE® PRO set is required to use this BRAKE TURTLE™ sensor set. Brake temperature data is critical for safety and performance. The data collected by The Team Plus® BRAKE TURTLES™ is added to its paired WHEEL TURTLE® data and it is critical to help setup brake, wheel and tyre settings, highlighting excess heat on the brake rotor and peak temperatures during a session live or by recorded data. \n \n
\n
\n
\n
\n

Cable - CAN and Power - 90cm (3ft)

\n
\n
GENERAL PURPOSE TEAM PLUS DTM 4 PIN TO UNTERMINATED – 90cm (3ft)  cable.  Ideal for connecting the Team Plus systems to car power source and the CAN bus of the CAN Dash/logger. 4Pin DTM connector to 4 unterminated wires.
\n
\n
\n
\n

View full details
