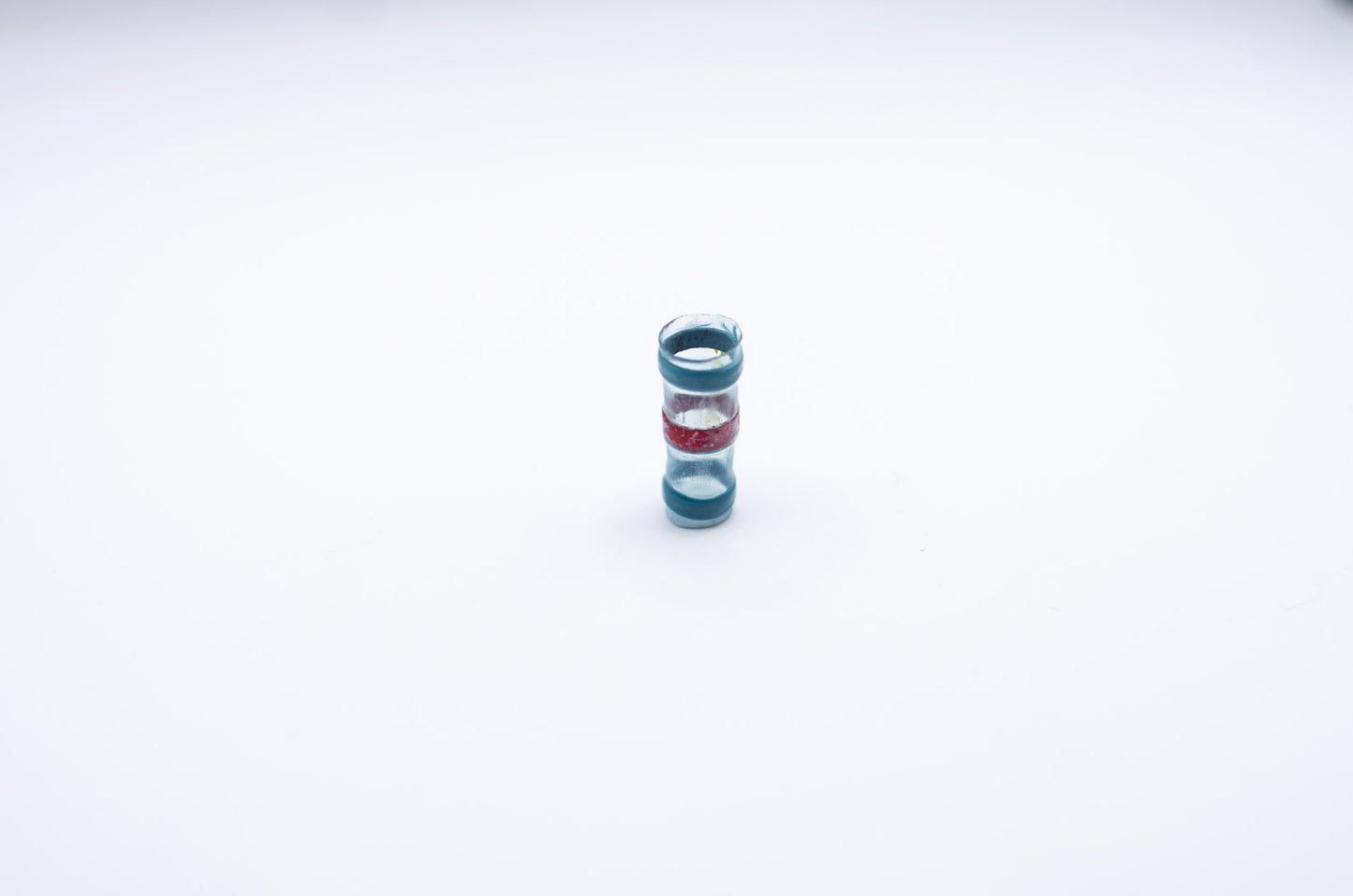

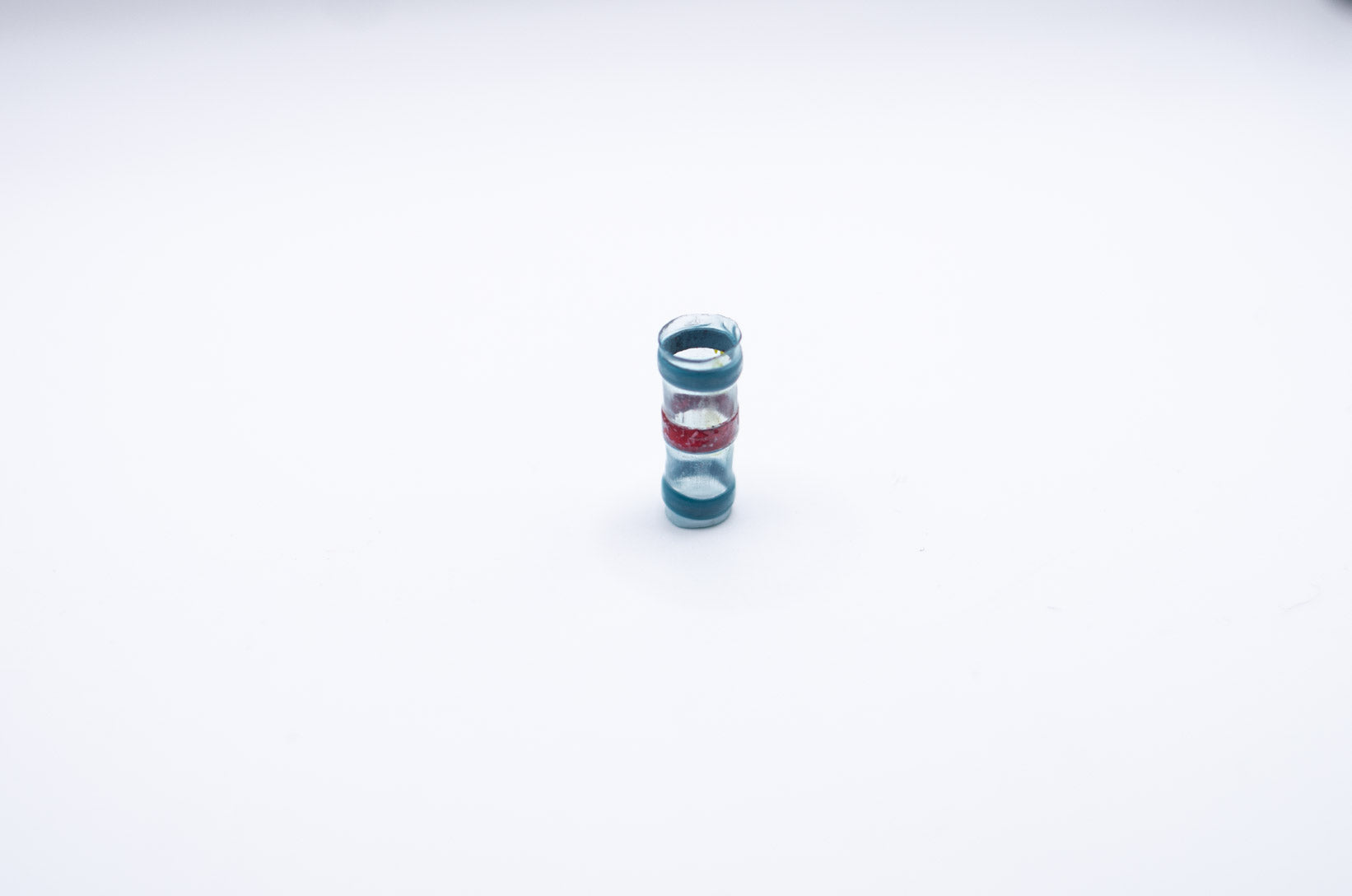

Raychem Solder Sleeve Splice

AS83519/1-3 \n \nSolder sleeves allow for the reliable solder termination of a wide variety of cables as well as wire connection applications. \n \nA solder sleeve solders, strain-relieves, electrically insulates, and mechanically protects splices in a single, quick and easy step. \n \nThe red section in the centre is low temperature solder, the outer barrel will shrink down, and the two dark blue sections on either end are sealing beads. \n \nThe solder operation is complete when all the red colour is gone away. \n \nThe following diagram from the TE Connectivity catalog shows the parts of a solder sleeve and a typical installation on shielded wire. \n \n \n \nThe above diagram shows a solder sleeve with an optional pre-installed wire, this is not the type supplied when purchasing this product. \n \n  \n \n  \n \n*Pending availability, this product may be substituted for a high quality alternative (for example an equivalent made by TE Connectivity)
