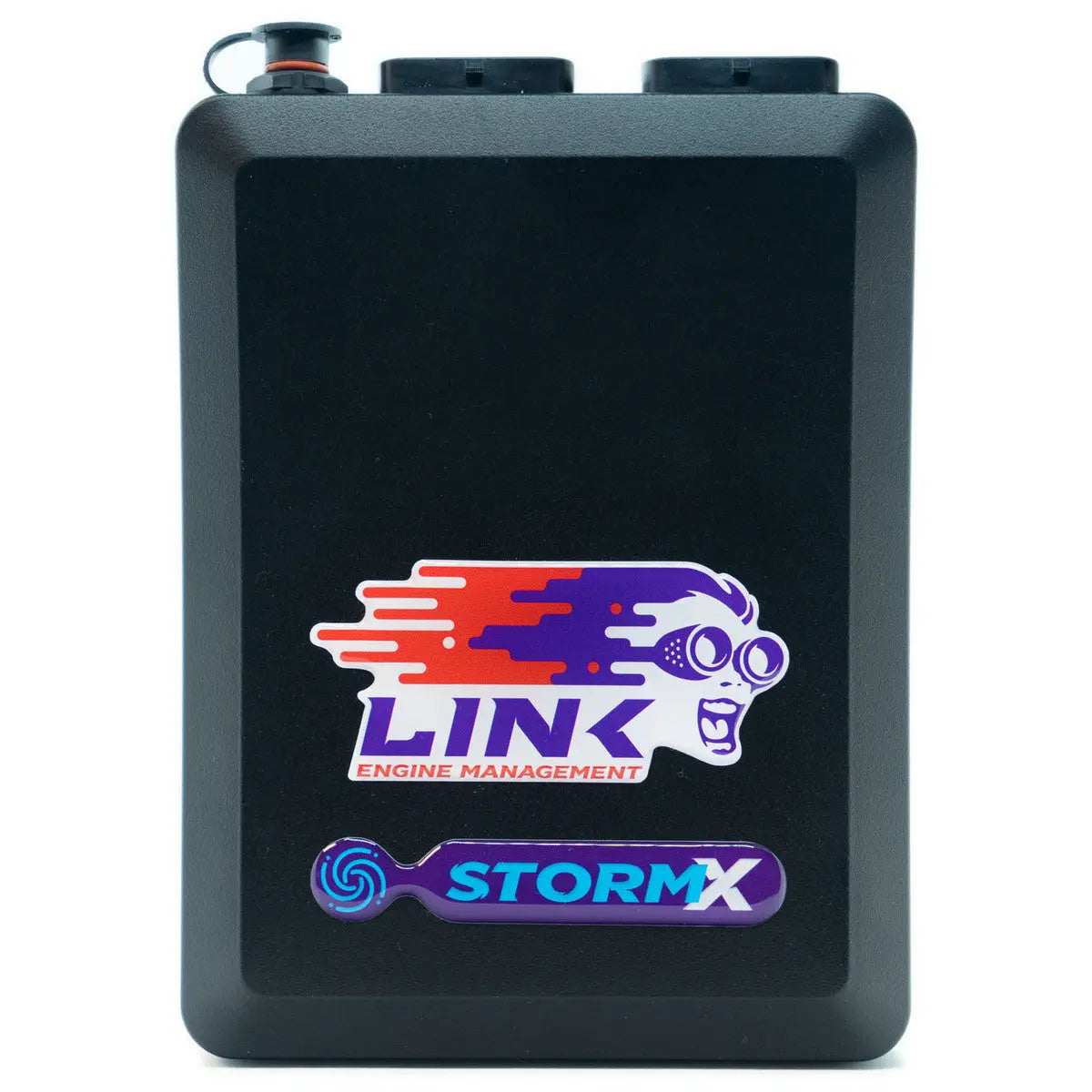

Link ECU G4X StormX

The Link G4X StormX ECU is the latest version of our trusty, mid-sized ECU. With eight injector and eight ignition drives, it allows sequential injection and direct spark on engines with up to eight cylinders or four rotors. \n \nThe StormX has all the upgrades of the AtomX and MonsoonX but offers more advanced tuning features like a built in Trigger Oscilloscope, Stepper Motor Idle Control, Rotary Oil Metering Pump Control, Onboard Knock Control, Open and Closed Loop Boost Control plus most Motorsport features including Full Gear Shift Control, Antilag and Launch Control. \n \nThe StormX has expanded data logging and is more responsive with a higher bandwidth than its G4+ Storm predecessor. G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec. \n \nIt also features 8 x faster communications speed, allowing you to download logs 8 x faster and pushes all the logging quickly up to a new and improved PCLink – available for download below in the features tab. \n

Features

\n

Inputs

\n

\n
• 8 X Digital Inputs
\n
• 3 X Temperature Inputs
\n
• 8 X Analog Inputs
\n
• 2 X Trigger Inputs
\n
• 2 X Knock Inputs
\n

\n

Outputs

\n

\n
• 8 X Injection Drives
\n
• 8 X Ignition Drivers
\n
• 8 X Auxiliary Outputs
\n
• +5V and +8V Sensor Power Supply
\n

\n

Communications

\n

\n
• 1 X CAN Bus
\n
• 1 X USB Tuning Connection
\n
• Upgraded Communications Chip (At Least 8 X Faster Than G4+ V2)
\n

\n

What's Included

\nThe StormX ECU is supplied with a USB tuning cable, mounting bracket and Link ECU stickers. \n \nDownload Stormx Quickstart Guide
