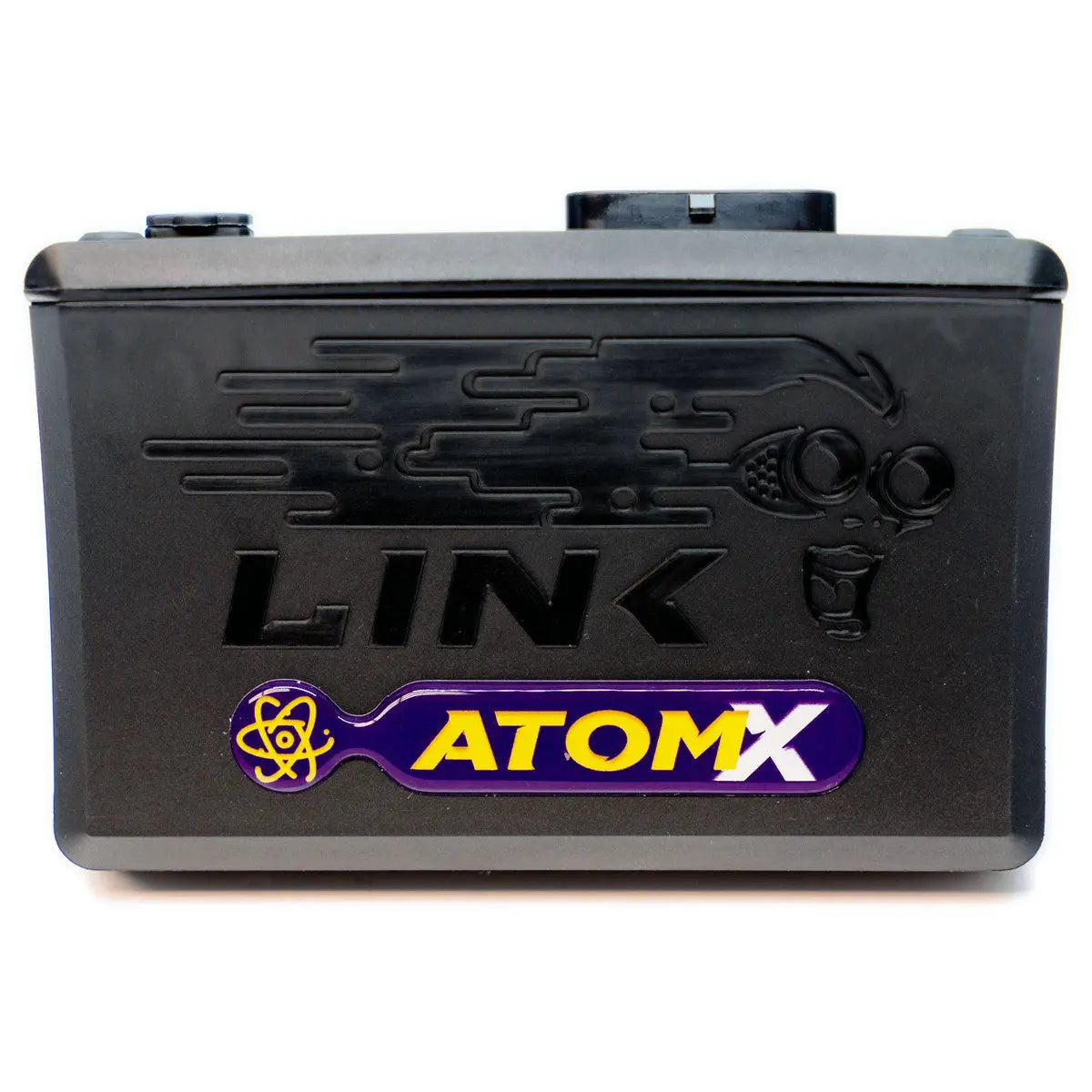

Link ECU G4X AtomX

The Link G4X AtomX ECU is the latest version of Link's entry-level ECU. Don't let its size fool you however, the AtomX has expanded data logging and uses the same microcontroller as the entire G4X range! It is more responsive and has higher bandwidth than its G4+ Atom II predecessor.

\n

G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.

\n

G4X features 8 times faster communications speed, allowing you to download logs 8 x faster and pushes all the logging quickly up to a new and improved PCLink available for download below in the features tab.

\n

The AtomX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark. or, it can be used for up to eight cylinders using batch fire.

\n

This makes it ideal for naturally aspirated engines that just need a re-tune and don't need all the extra sensors and features that come with our higher level ECUs.

\n \n

Features

\n

Inputs:

\n

\n
• 2 x Digital inputs.
\n
• 2 x Temperature inputs.
\n
• 3 x Analog inputs.
\n
• 2 x Trigger inputs.
\n

\n

Outputs:

\n

\n
• 4 x Injector drives.
\n
• 4 x Ignition drivers.
\n
• 4 x Auxiliary outputs^.
\n
• +5V Sensor power supply.
\n
• ^unused ignition drives can be used as additional Aux.
\n
• Outputs.
\n

\n

Communications:

\n

\n
• 1x CAN bus.
\n
• 1x USB tuning connection.
\n
• 1 x thirty-four pin, waterproof connector.
\n
• Upgraded Communications Chip.
\n

\n

What's in the box:

\nThe AtomX ECU is supplied with a USB tuning cable, mounting bracket and four Link ECU stickers. \n \nDownload the AtomX Quickstart Guide \n \n
