Flex Fuel Sensor

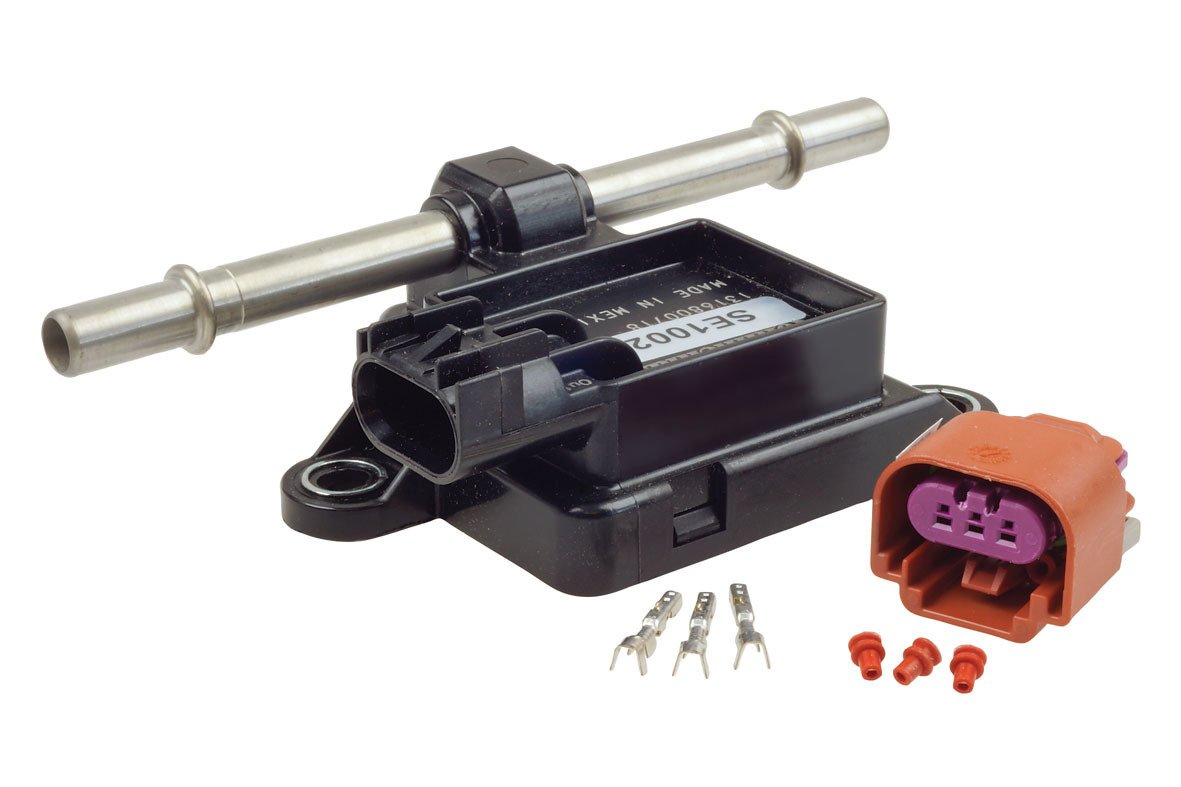

Continental Flex Fuel (Ethanol) Sensor \n \nUse this Flex Fuel Sensor to measure the actual ethanol content of the fuel in your fuel system. \n \nCompatible with: \n

\n
• ECU Masters
\n
• Haltech
\n
• Link
\n
• Motec
\n
• Many more...
\n

\nType: Flex Fuel Sensor \nConnection: 3 Wire \nPower: 12VDC \nBarb: 3/8″ (Push On/Quick Connect Lock Fuel Adapter Compatible) \nMaximum Flow: 400LPH \nOperating Temperature: -40 to 150°C \nSensor Output Pull-Up Resistor: 2.2 – 10.0kΩ \n \nOutput: \nEthanol Content % = [Frequency (Hz) – 50] \nFuel Temperature °C = [41.5 * Pulse width (ms)] – 81.25 \n \nDatasheet: SS-0616-101 Data Sheet \n

Kit Contains:

\n

\n
• Delphi Connector
\n
• Datasheet
\n
• Genuine Continental Flex Sensor
\n
• 2x AN6 EFI Barbs (BLK)
\n
• Stainless Bracket
\n

\n

Installation Suggestions

\nCrimp connector pins with Sargent 1026CT \n \nConnect with 20 ga Wire
