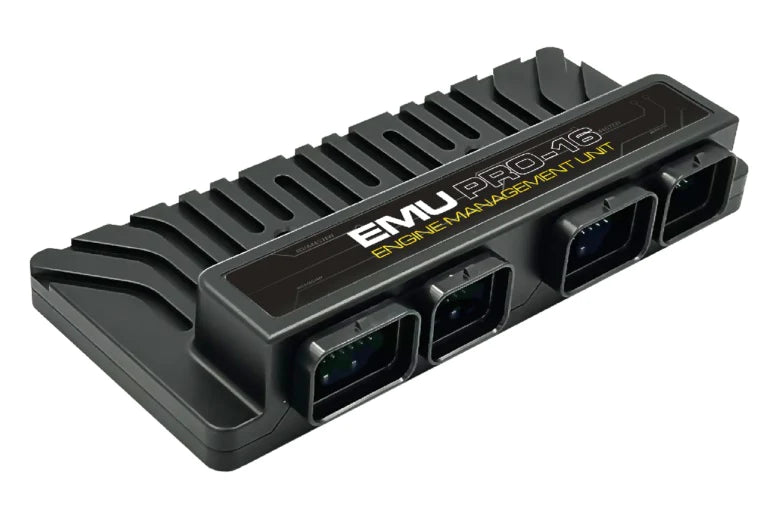

ECU Master EMU PRO-16

\n

PRO-16

\nThe EMU PRO is a stand-alone engine management system aimed directly at professional motorsport with a comprehensive feature set and vast tuning possibilities. Built on a whole new platform from previous ECUs it offers precise powertrain control coupled with the ultimate flexibility to adapt the engine calibrations for the most demanding projects. The EMU PRO 16 is designed for applications with a high number of inputs/outputs. \n \nAll ECUs are supplied with a set of connectors and terminals \n \nAdvanced fueling model including closed-loop short- and long-term trim algorithms combined with fuel film model gives exceptional accuracy of injectors control. \n \nSoftware is designed to give the user unprecedented flexibility for configuration of strategies. All tables have both size and Bins values fully user adjustable on both X and Y axis for easy manipulation increased accuracy between non linear transitions. \n \nFlexible system with custom functions, numbers, CAN inputs and CAN exports, well known from Power Management Unit (PMU) and Advanced Display Unit (ADU). \n \n  \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

\n GENERAL \n
Temperature range	AECQ100 GRADE1 (-40 to +125˚C)
Enclosure	IP 65, bespoke CNC machined aluminium
Size (mm)	197x94.5x38.1
Connectors	2 x 34 Position AMP Superseal 1.0 connectors \n \n2 x 26 Position AMP Superseal 1.0 connectors
PC communication	CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)
\n OUTPUTS \n
Injectors	16x peak and hold (8A)
Ignition Outputs	12x active or 10x passive coils (15A)
Auxiliary Outputs	16x low-side (5A)
H-Bridges	4x full H-bridge
+5V	2x 500mA (two independent)
\n INPUTS \n
Analog Inputs	20 inputs, 12 bit resolution with software selectable pullups/pushdowns \n \n8 inputs, 16 bit resolution (high precision) with software selectable pullups/pushdowns (EGT inputs)
Digital Inputs	10x inputs for VR or HALL sensors (software selectable)
\n OTHER \n
Direct Injection	Up to 8 injectors. \n \nRequires external module
VVT Controllers	4x
Lambda Controllers	2x LSU 4.9
DBW Controllers	2x
Knock Sensors	2 inputs
