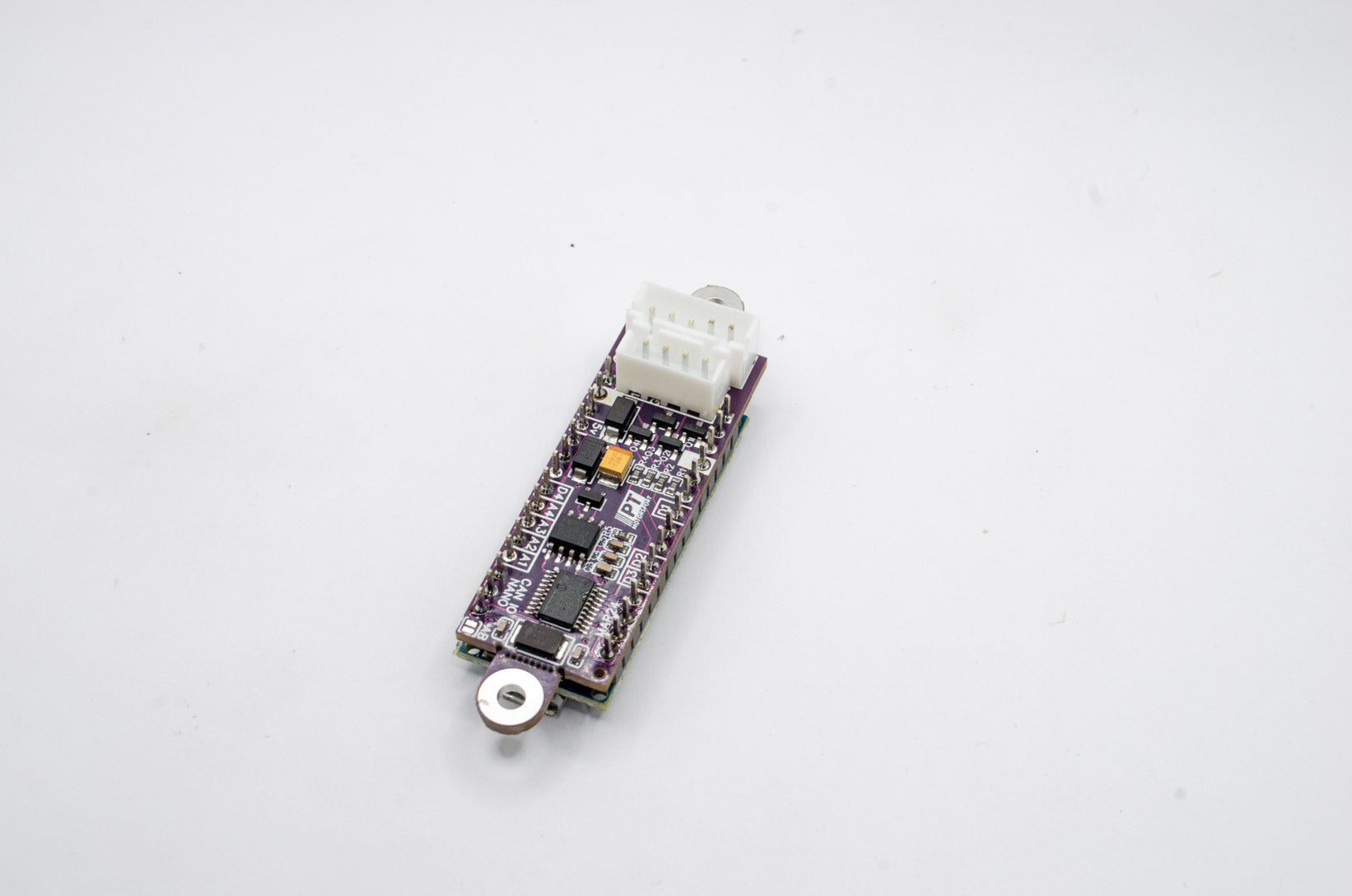

CANbus IO Expander - Nano

CANbus IO Expander - Nano

$108.90 AUD
$108.90 AUD
Sale Add To Special Order - 4 Weeks
Tax included. Shipping calculated at checkout.

BETA TEST UNITS \n \nEmulates behavior of Haltech IO 12 box. \n
    \n
  • 4x Digital pulsed outputs (200ma Limit)
    • \n
  • 4x 0v - 5v Analog inputs
    • \n
  • 4x Digital Inputs (on - off state only)
    • \n
  • Change from IO Box A or B by jumping pin A5 to ground or not.
    • \n
\n
There are limitations with this nano board:
\n
- 200mA limit for the outputs.
\n
- No frequency drive for the outputs. State or PWM only. (490hz or 980hz)
\n
- 0v-5v on the AVI only, no input protection, no 12v input to AVI or DPI pins
\n
-DPIs are state only (on or off), No Frequency measurements. Pull to ground.
\n
\n
\n  \n \nWill come with an Arduino Nano with the code loaded on and tested. \n \nWill come with 4 and 5 pin connectors and terminals. \n \nCode for this project is on our gitHub - https://github.com/ptmotorsport/IObox-emulator-haltech \n \n
