CANbus IO Expander - Mini

CANbus IO Expander - Mini

$220.00 AUD
$220.00 AUD
Sale Add To Special Order - 4 Weeks
Tax included. Shipping calculated at checkout.

Emulates behavior of Haltech IO 12 box. \n
    \n
  • 4x 0v - 5v Analog inputs
    • \n
  • 4x Digital Inputs \n
      \n
    • DI1 - Reads Frequency, Duty and State (10hz-300hz)
      • \n
    • DI2-4 - Reads State Only (Switch to ground)
      • \n
    \n
    • \n
  • 4x Digital pulsed outputs
    • \n
  • Change from IO Box A or B by soldering across the solder bridge marked "AB".
    • \n
\nCompatible with the following ECUs \n
    \n
  • Haltech - PS, Elite and Nexus
    • \n
  • Link G4+, G4X, G5
    • \n
  • MAXXECU
    • \n
  • ECU Master Pro, ADU and PMU
    • \n
\n  \n \nPullup resistors can be added for the Analog inputs by soldering across the relevant pads on the bottom of the board. Resistors are now built-in and are not required to be separately soldered on. \n
There are limitations with this mini board:
\n
- 200mA limit for the outputs.
\n
- No frequency drive for the outputs. State or PWM only. (490hz or 980hz)
\n
- 0v-5v on the AVI only.
\n
- Input protection for AVI, 12v tolerant. Still only reads 0-5v
\n
\n
- DPI1 can read frequency, duty and state.
\n
- DPI2, 3 & 4 are state only (on or off), No Frequency measurements. Pull to ground. Also 12V tolerant.
\n
- Built in pullup resistors are 1k ohm. Solder across the pads under rear cover to use them.
\n
\n
- Swap from A mode to B mode by bridging the "AB" solder pads under the rear cover.
\n
\n

Top View

\n
\n \n \n  \n \n  \n

Bottom View \n

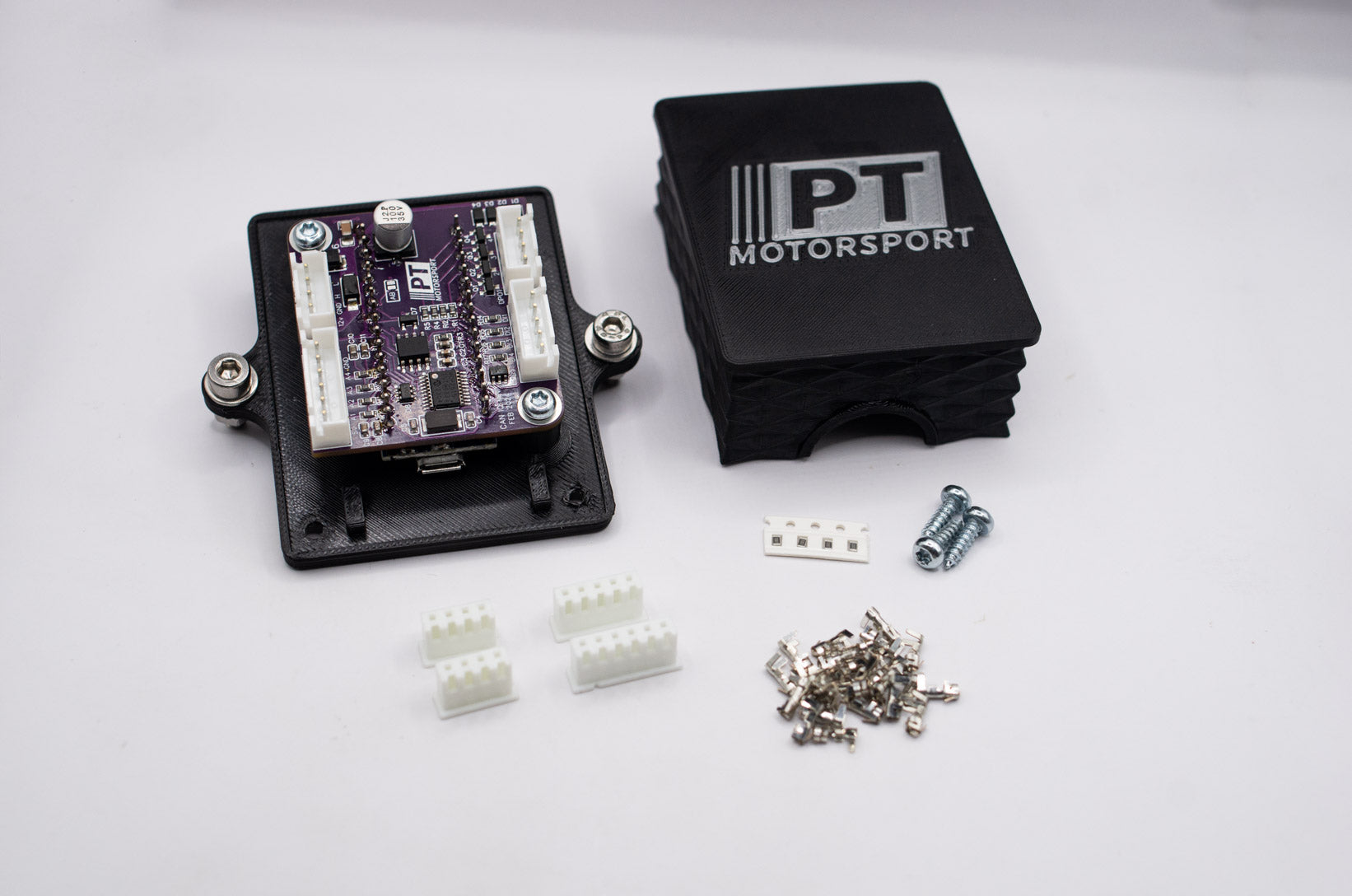

\nWill come with an Arduino Nano with the code loaded on and tested. \n \nIncludes: \n
    \n
  • 2x 4 position connectors
    • \n
  • 1x 5 position connector
    • \n
  • 1x 6 position connector
    • \n
  • 19x terminals
    • \n
  • 3D printed case with mounting hardware
    • \n
\n

Dimensions

\n \n

Open Source Firmware

\nCode for this project is on our gitHub - https://github.com/ptmotorsport/IObox-emulator-haltech \n \nCheck it out! Learn something new and contribute! \n \nTo update the firmware, follow this guide: \n \nIO Expander Firmware update Instruction Manual.pdf
