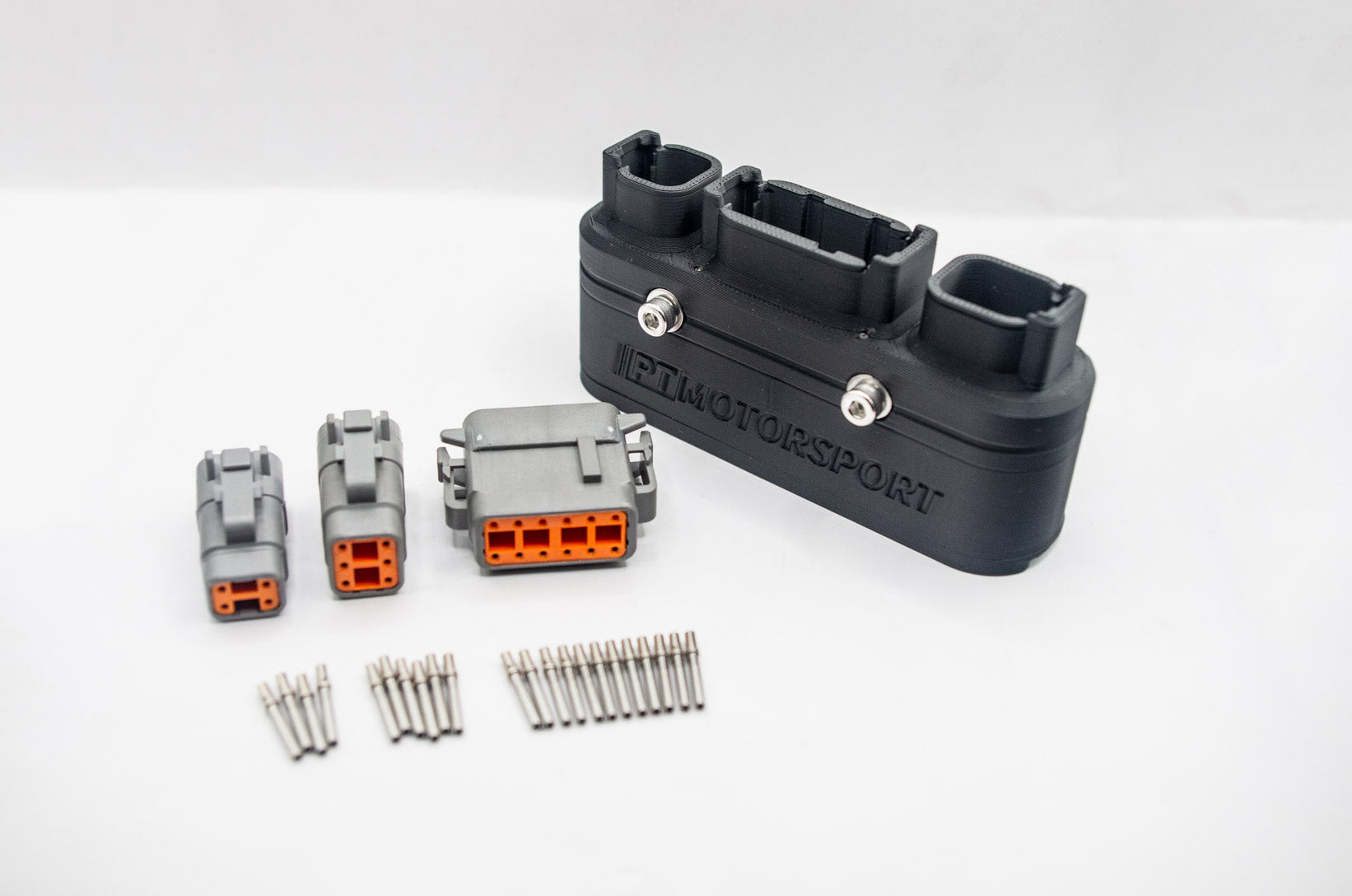

CANbus IO Expander - DTM

CANbus IO Expander - DTM

$328.90 AUD
$328.90 AUD
Sale Add To Special Order - 4 Weeks
Tax included. Shipping calculated at checkout.

Emulates behavior of Haltech IO 12 box. \n
    \n
  • 4x 0v - 5v Analog inputs (built in switchable pullup resistors)
    • \n
  • 4x Digital Inputs \n
      \n
    • DI1 - Reads Frequency, Duty and State (10hz-300hz)
      • \n
    • DI2-4 - Reads State Only (Switch to ground)
      • \n
    \n
    • \n
  • 4x Digital pulsed outputs (low side switched)
    • \n
  • Change from IO Box A or B by soldering across the solder bridge marked "AB". (by default IO is in A mode)
    • \n
\nCompatible with the following ECUs \n
    \n
  • Haltech - PS, Elite and Nexus
    • \n
  • Link G4+, G4X, G5
    • \n
  • MAXXECU
    • \n
  • ECU Master Pro, ADU and PMU
    • \n
\n  \n \nPullup resistors can be added for the Analog inputs by soldering across the relevant pads on the bottom of the board. \n
Note:
\n
- 3A limit per channel, with a 7A overall limit for the outputs.
\n
- No frequency drive for the outputs. State or PWM only. (490hz or 980hz)
\n
- 0v-5v on the AVI.
\n
- Input protection for AVI, 12v tolerant. Still reads 0-5v
\n
- DPI1 can read frequency, duty and state.
\n
- DPI2, 3 & 4 are state only (on or off), No Frequency measurements. Pull to ground. Also 12V tolerant.
\n
- Built in pullup resistors are 1k ohm. Solder across the pads under rear cover to use them.
\n
- Swap from A mode to B mode by bridging the "AB" solder pads under the rear cover.
\n
\n

Pinout

\n \n \n  \n \nIncludes: \n
    \n
  • PT Motorsport IO - DTM
    • \n
  • 1x DTM12 half kit
    • \n
  • 1x DTM6 half kit
    • \n
  • 1x DTM4 half kit
    • \n
  • 22x terminals
    • \n
  • Mounting hardware
    • \n
\n

Dimensions

\n \n

Open Source Firmware

\nCode for this project is on our gitHub - https://github.com/ptmotorsport/IObox-emulator-haltech \n \nCheck it out! Learn something new and contribute! \n \nTo update the firmware, follow this guide: \n \nIO Expander Firmware update Instruction Manual.pdf
